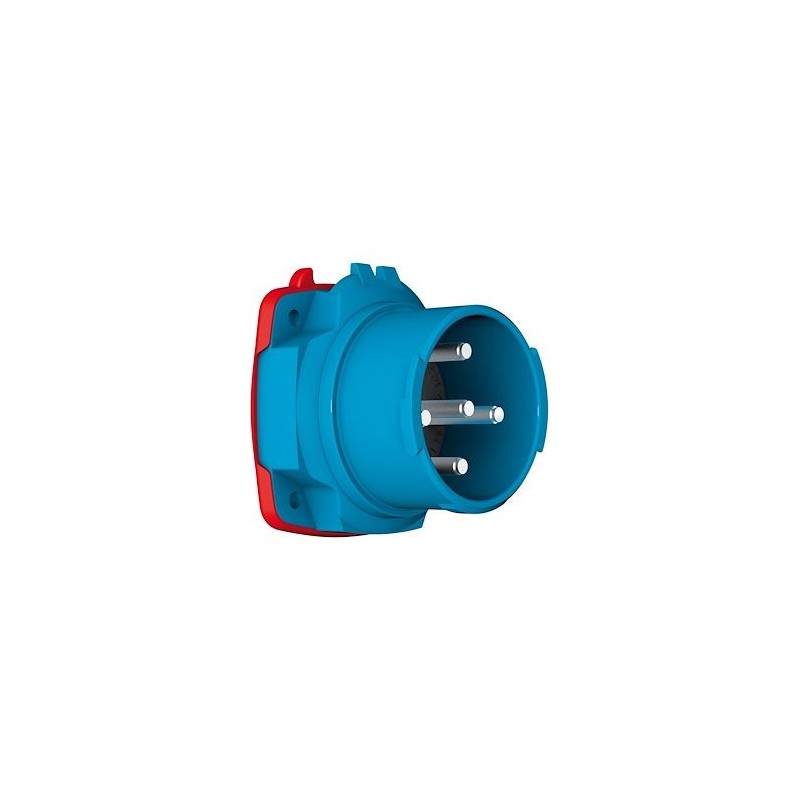

Il connettore maschio DSN6 è l'elemento mobile (spina volante) della gamma DECONTACTOR™ di Marechal Electric, progettato per applicazioni industriali che richiedono un'alimentazione trifase sicura e ad alta corrente da 63 A.
- Specifiche tecniche principali (trifase da 63 A)
Potenza nominale e configurazione: 63 A in configurazione 3P+T (tre fasi più terra).
Intervallo di tensione: il connettore è adatto a diverse tensioni trifase: 380–440 V CA o 440–690 V CA.
Collegamento cavi: accetta cavi flessibili da 6 mm² a 16 mm² e cavi rigidi da 10 mm² a 25 mm².
✅ Sicurezza e robustezza
DECONTACTOR: Parte della tecnologia Marechal, che consente la disconnessione sotto carico (AC-22 / AC-23) al momento della disconnessione.
Protezione e tenuta: Il connettore offre un grado di protezione IP66/IP67 (resistente alla polvere, protetto contro getti d'acqua potenti e immersione temporanea).
Resistenza agli urti: Grado di resistenza meccanica IK09.
Materiale: Corpo in POLY (polimero o poliammide ad alta resistenza).
Ambiente: Temperatura di esercizio da -40 °C a +60 °C.
LY-MAR-6168017
3 Articoli
Scheda dati
- Larghezza
- 9 cm
- Altezza
- 10 cm
- Lunghezza
- 6 cm
- Peso
- 2 kg
- Tensione
- 440 V AC
- amplificatori
- 63 A
- Poli
- 3P+N+T
- Materiale
- Poliestere blu
