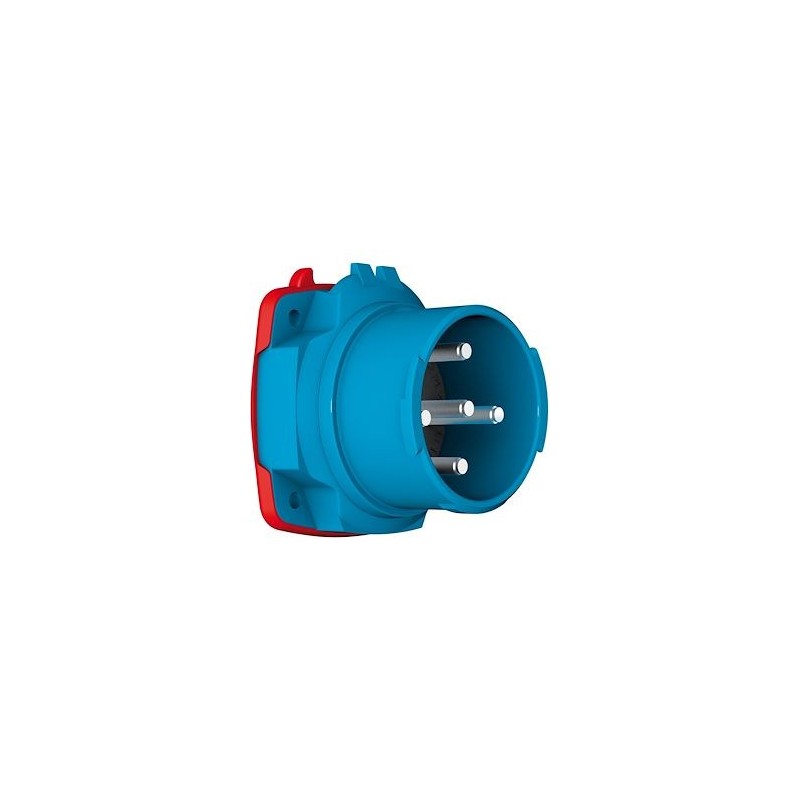

Le Connecteur mâle DSN6 est l'élément mobile (fiche volante) de la gamme DECONTACTOR de Marechal Electric, conçu pour les applications industrielles nécessitant une alimentation triphasée sécurisée à haute intensité de 63 A.
- Caractéristiques Techniques Clés (63A Triphasé)
Intensité et Configuration : 63 A en configuration 3P+T (Trois Phases plus Terre).
Plage de Tension : Le connecteur est adapté à plusieurs tensions triphasées : 380−440 V AC ou 440−690 V AC.
Raccordement du Câble : Il accepte des câbles souples de 6 mm2 à 16 mm2 et des câbles rigides de 10 mm2 à 25 mm2
- Sécurité et Robustesse
DECONTACTOR: Fait partie de la technologie Marechal permettant la coupure sous charge (AC-22 / AC-23) lors de la déconnexion.
Protection et Étanchéité : Le connecteur offre un indice de protection IP66/IP67 (étanche à la poussière, protégé contre les jets d'eau puissants et l'immersion temporaire).
Résistance aux Chocs : Indice de résistance mécanique IK09.
Matériau : Corps en POLY (Polymère ou Polyamide de haute résistance).
Environnement : Température de fonctionnement de −40 °C à +60 °C.
LY-MAR-6168017
3 Produits
Fiche technique
- Largeur
- 9 cm
- Hauteur
- 10 cm
- Longueur
- 6 cm
- Poids
- 2 kg
- Tension
- 440 V AC
- Ampère
- 63 A
- Pôles
- 3P+N+T
- Matière
- Polyester bleu
