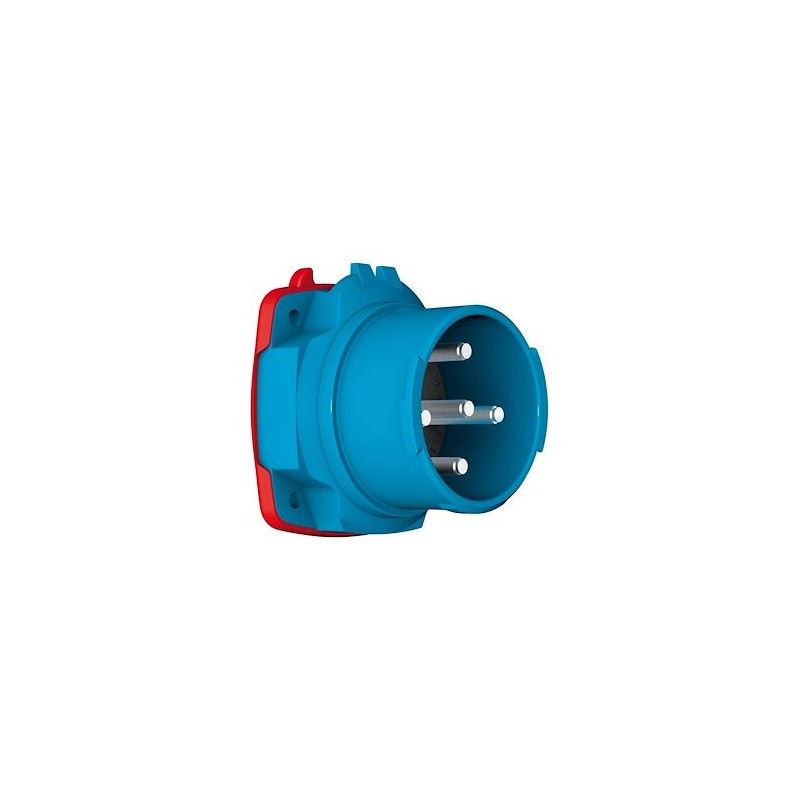

The DSN6 male connector is the mobile element (flying plug) of the Marechal Electric DECONTACTOR range, designed for industrial applications requiring a secure, high-current, 63 A single-phase power supply.
- Key Technical Specifications (63 A)
Rating and Configuration: 63 A in 1P+N+E (Phase, Neutral, Earth) configuration.
Voltage Range: The connector is suitable for typical single-phase voltages, including 220-250 V AC.
Cable Connection: It accepts flexible cables from 6 mm² to 16 mm² and solid cables from 10 mm² to 25 mm².
- Safety and Robustness
DECONTACTOR: Part of Marechal's technology, which enables load-break (AC-22 / AC-23) during disconnection.
Protection and Waterproofing: The connector offers an IP66/IP67 protection rating (dustproof, protected against powerful water jets and temporary immersion) once connected to the base.
Impact Resistance: Mechanical resistance rating IK09.
Material: POLY body (high-strength polymer or polyamide).
Environment: Operating temperature from −40°C to +60°C.
LY-MAR-6168015
3 Items
Data sheet
- Width
- 9 cm
- Height
- 10 cm
- Length
- 6 cm
- Weight
- 2 kg
- Voltage
- 250 V AC
- amps
- 63 A
- poles
- 1P+N+T
- Material
- Blue polyester
