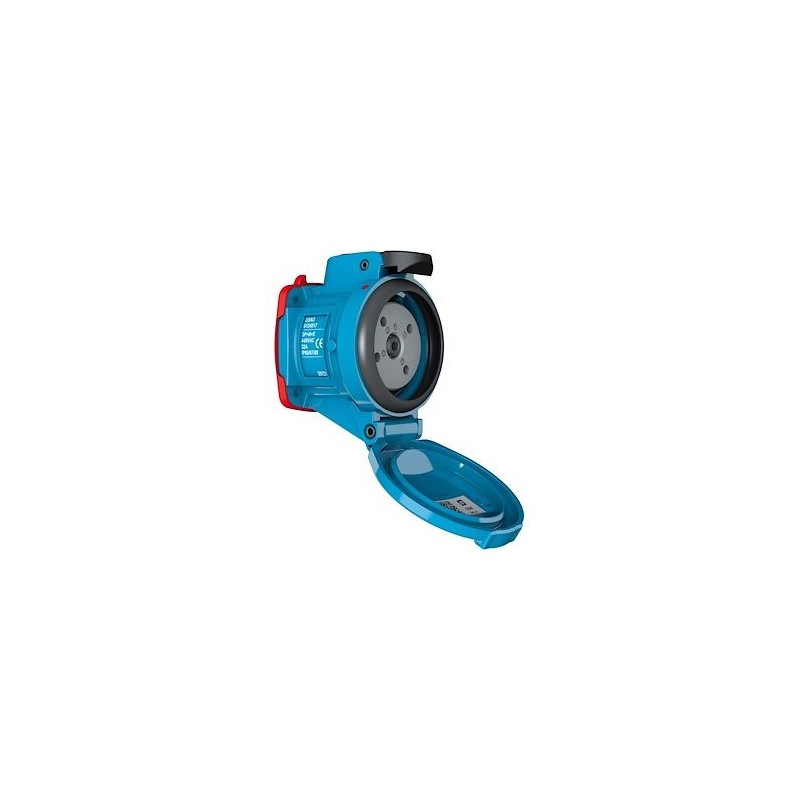

DSN6 female socket - 63Ah (1P+N+T) Marechal Electric
€356.42
Tax included
LY-MAR-6164015R
3 Items
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
The DSN6 female socket is an essential component of Marechal Electric's DECONTACTOR range, designed for industrial applications requiring a secure, high-current 63 A single-phase power supply.
- Key Technical Specifications (63 A)
Rating and Configuration: 63 A in 1P+N+E (Phase, Neutral, Earth) configuration.
Voltage Range: The socket is suitable for typical single-phase voltages, including 220-250 V AC.
Contacts and Connection: It accepts flexible cables from 6 mm² to 16 mm² and solid cables from 10 mm² to 25 mm².
- Safety and Robustness
DECONTACTOR: Incorporates Marechal's breaking capacity, enabling switching under load (AC-22 / AC-23).
Protection and Waterproofing: The base offers an IP66/IP67 protection rating (dustproof, protected against powerful water jets and temporary immersion).
Impact Resistance: Mechanical resistance rating IK09.
Material: POLY body (high-strength polymer or polyamide).
Environment: Operating temperature from −40°C to +60°C.
LY-MAR-6164015R
3 Items
Data sheet
- Width
- 178 mm
- Height
- 122 mm
- Length
- 286 mm
- Weight
- 2 kg
- Voltage
- 250 V AC
- amps
- 63 A
- poles
- 1P+N+T
- Material
- Blue polyester
