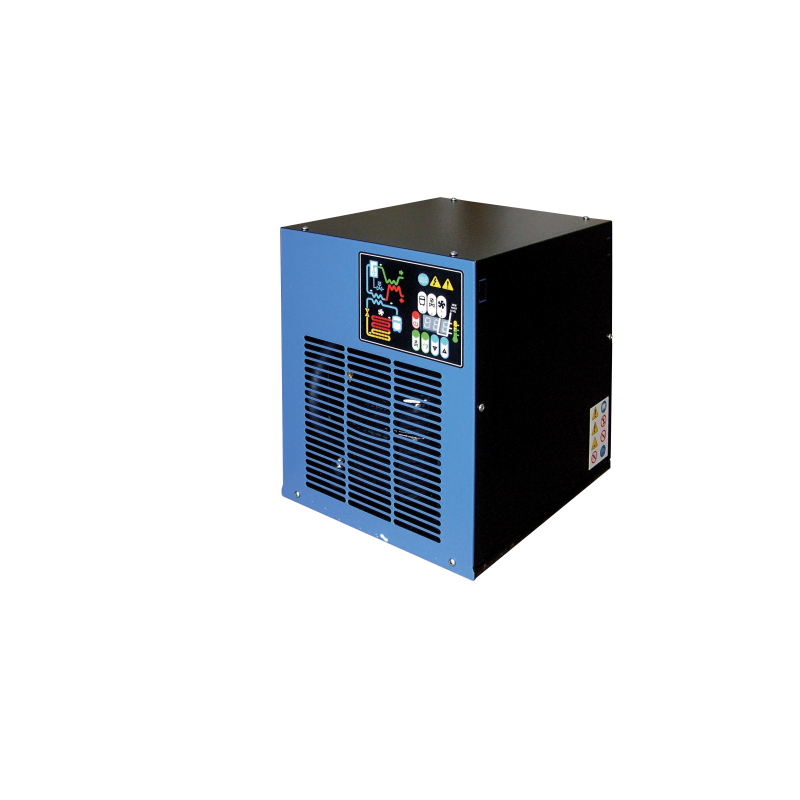

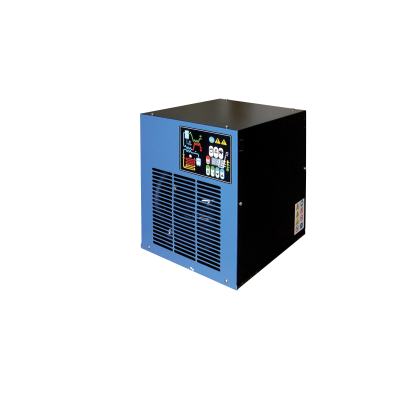

Air dryer ED 54 Gianneschi

This dryer is an essential component of compressed air systems, its role being to remove moisture (water vapor) to protect pneumatic tools and equipment from corrosion and wear.

Principle of Operation: The ED 54 model is a refrigerated dryer. It cools compressed air to force the water it contains to condense. The liquid water is then separated.

High-Efficiency Design:

• It features a high-efficiency heat exchanger that incorporates a special condensate separator for maximum moisture extraction.
• The air purity level reaches a CLASS 4 dew point, indicating very dry air.

Inspection and Maintenance:

• The unit is equipped with alarms (high/low temperature, anti-icing, etc.) for accurate monitoring.
• The electronic condensate drain is programmable and time-controlled, allowing automatic and efficient condensate drainage based on operating conditions.

Technical Specifications :

• Operating pressure: 7 bar (nominal pressure for optimal performance).
• Ambient temperature: 25°C (maximum 45°C).
• Air inlet temperature: 35°C (maximum 55°C).
• Voltage: 230V/1ph/50Hz (standard single-phase power supply).
• Refrigerant: R134a (standard for refrigerated dryers).

The ED 54 model is a robust choice, positioned between the ED 24 and ED 72 models in terms of flow rate, suitable for medium-sized compressed air requirements on a vessel.
