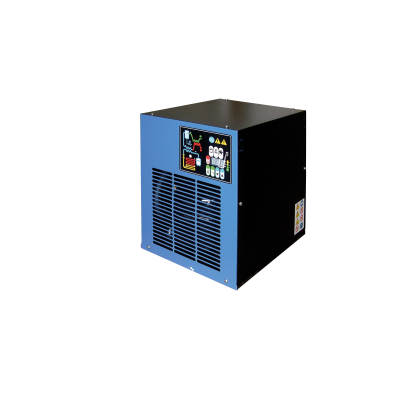

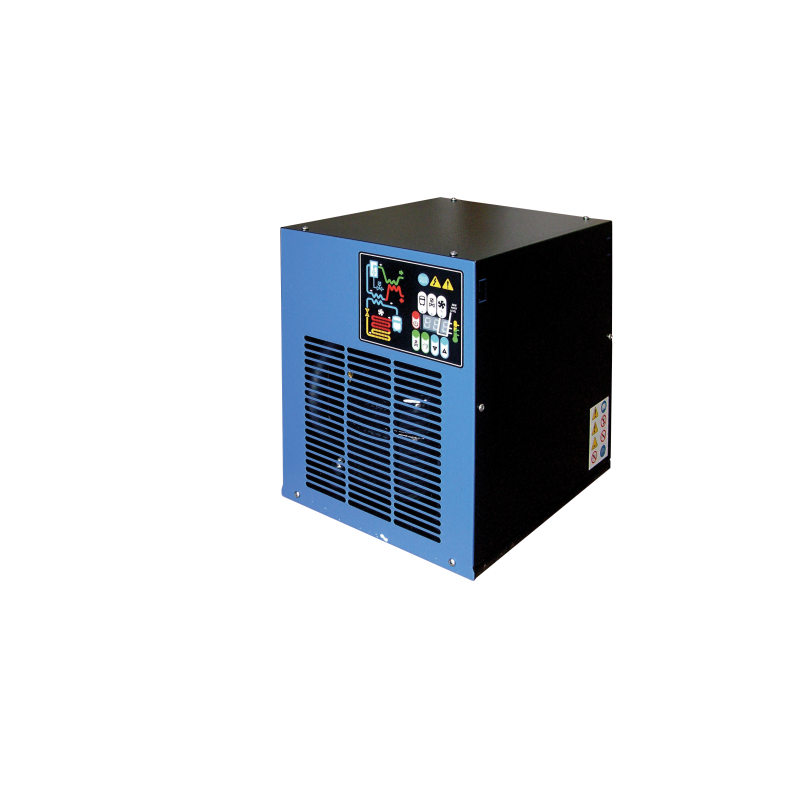

Air dryer ED 72 Gianneschi
€7,067.98
Tax included
LY-GIA-445098
3 Items
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
This dryer uses refrigeration to condense and separate water vapor from compressed air, protecting pneumatic equipment from corrosion.
- Operating Principle: This refrigerated dryer cools the air to extract moisture in the form of condensate.
- High Efficiency: It incorporates a high-efficiency heat exchanger with a special condensate separator.
- Air Quality: It achieves a CLASS 4 dew point, guaranteeing a high level of dryness for compressed air.
Advanced Control:
- The system is equipped with a wide range of monitoring parameters and alarms (high/low temperature, anti-icing, etc.).
- A time-delayed, programmable electronic condensate drain is included for automatic and adaptive condensate drainage.
Technical Specifications:
- Operating Pressure: 7 bar (nominal operating pressure).
- Ambient temperature: 25°C (maximum 45°C).
- Air inlet temperature: 35°C (maximum 55°C).
- Voltage: 230V/1ph/50Hz (standard single-phase power supply).
- Refrigerant: R134a.
The ED 72 model is suitable for compressors larger than the ED 24, ensuring optimal compressed air quality for more demanding on-board pneumatic systems.
LY-GIA-445098
3 Items
Data sheet
- Width
- 370 mm
- Height
- 435 mm
- Length
- 435 mm
- Weight
- 26 kg
