DS2 Female Socket Blue Metal – 3P+N+T 250A 440V AC Momentary Cover

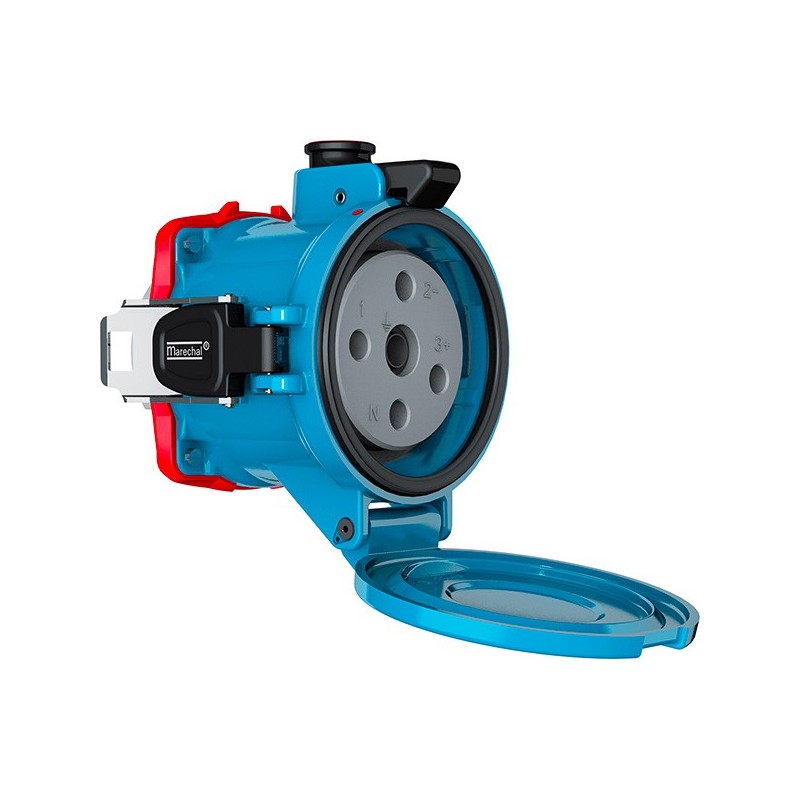

The DS2 Female Socket from Marechal Electric is a fixed connection base designed to power very high-power installations, capable of handling an exceptional current of 250 A at 440 V AC (3P+N+E).

Extreme Capacity and Target Application: With 250 A, this socket is the standard fixed solution for the massive power requirements of commercial ports, shipyards, and heavy industrial sites, where reliable and stable power is critical.

IK10 Metal Construction: The blue metal body (often made of aluminum/steel alloy) gives the socket maximum robustness, certified IK10 (the highest protection against impacts). This design makes it resistant to the most aggressive environments.

Integrated Decontactor Safety: The base incorporates a switching capacity (AC-22/AC-23) that allows safe disconnection and connection under full load with the corresponding DS2 male connector, ensuring operator and system safety.

Full Protection with a Self-Locking Cover: The self-locking cover ensures contact protection when the plug is removed. This feature ensures maximum protection rating IP66/IP67 against temporary immersion, dust, and weather.
