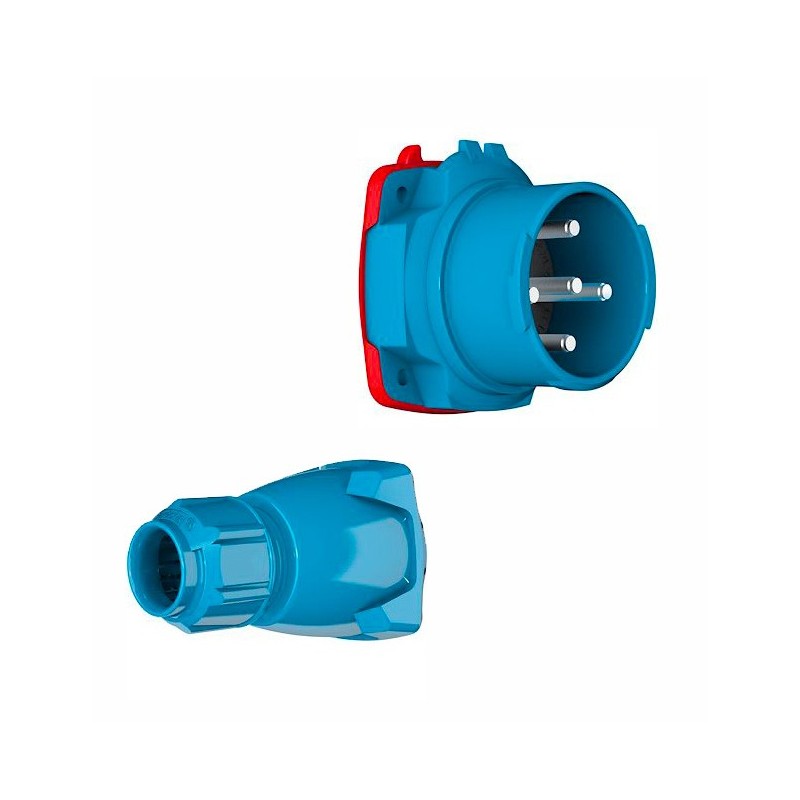

This kit combines the DSN6 male connector (the flying lead) and its polyamide handle (POLY), forming a secure and mobile connection solution for Marechal Electric's DECONTACTOR range. It is designed for demanding environments and supports a 63 A three-phase power supply.
- Electrical Specifications and Capacity
Current and Configuration: 63 A in 3P+E (Three Phases plus Earth).
Rated Voltage: Suitable for three-phase voltages of 380−440 V AC or 440−690 V AC.
Breaking Capacity: Incorporates DECONTACTOR technology, enabling load breaking (AC-22 / AC-23).
Cable Connection: The assembly accepts flexible cables from 6 mm² to 16 mm² and rigid cables from 10 mm² to 25 mm².
- Protection and Robustness
Waterproofing: The connector and its handle offer an IP66/IP67 protection rating when connected to the base, guaranteeing resistance to temporary immersion.
Resistance: The POLY (Polyamide) construction provides high resistance to impact (IK09) and temperature variations (−40°C to +60°C).
LY-MAR-014011
3 Items
Data sheet
- Width
- 8 cm
- Height
- 9 cm
- Length
- 19 cm
- Weight
- 3 kg
- Voltage
- 440 V AC
- amps
- 63 A
- poles
- 3P+N+T
- Material
- Blue polyester
