DS6 female socket with handle – 90A (3P+N+T) Marechal Electric
€540.76
Tax included
LY-MAR-014084
3 Items
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.

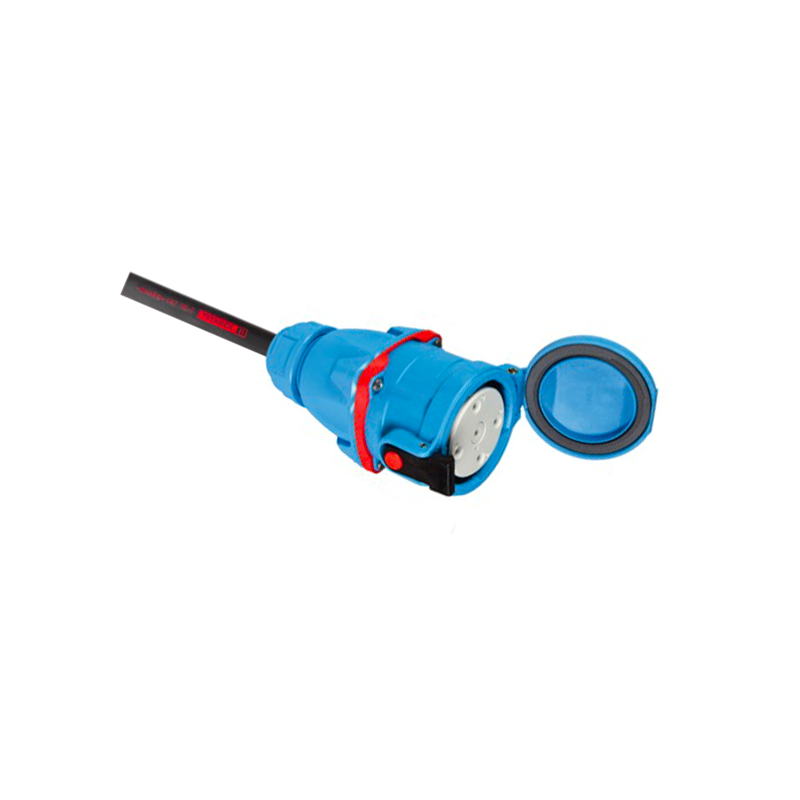

The DS6 Female Socket from Marechal Electric is a 90A fixed connection socket designed for three-phase systems with Neutral and Earth (3P+N+E), typically operating at 400V AC (or 440V).
DECONTACTOR Technology: Beyond a simple socket, this socket incorporates a switch with a breaking capacity (AC-22/AC-23). This unique feature allows for safe connection and disconnection of the live installation, simplifying operations and reducing downtime.
Extreme Resistance: The enclosure is built for harsh marine environments and heavy industrial installations. It is often available in Glass-Filled Polyester (GRP) or metal, offering excellent impact resistance (IK09).
Waterproofing and Durability: The waterproofing of the socket is ensured by a high protection rating, generally IP66/IP67 (once the cover is closed or the plug is connected), protecting the system against temporary immersion and powerful water jets.
Reliable Three-Phase Connection: Ideal for powering high-power motors, pumps, cranes, or shore power terminals, it guarantees a reliable and secure power supply thanks to the end contacts with silver-nickel pads, minimizing wear due to electrical arcs.
LY-MAR-014084
3 Items
Data sheet
- Width
- 178 mm
- Height
- 228 mm
- Length
- 405 mm
- Weight
- 3 kg
- Voltage
- 440 V AC
- amps
- 90 A
- poles
- 3P+N+T
- Material
- Blue polyester
